EICHER • CONSTRUCTION TIPPER

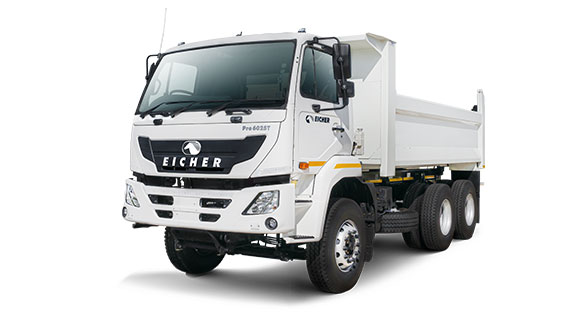

Pro 6025T 280 HP
Discover Eicher Pro 6025T 280 HP at Thompson Motors. Explore the vehicle, read the details and plan your next move.
Construction tipper
Make it your next move.
- 25-tonne nominal GVM
- VEDX8 six-cylinder engine
- 280 hp
- 1050 Nm
- 10 cubic metre body
Equipment and specifications depend on the selected version. Our team will confirm the details for your quotation.
A CLOSER LOOK
Explore Pro 6025T 280 HP.
DESIGNED FOR YOUR JOURNEY
Get to know your vehicle.
Overview
The 280 hp Pro 6025T tipper provides 1,050 Nm and a manufacturer-listed 10 cubic metre body. Its ET140S9 gearbox and 25,500 kg listed GVM distinguish this specification from the 250 hp version.
Applications
Body and operating applications listed by Eicher include stone, sand, road construction, iron & steel, blue metal. Body fitment and availability are confirmed with your quote.
Configuration and availability
Specifications shown are from the official South African catalogue. Vehicle and body configuration, lead times and current availability are confirmed by Thompson Motors.
THE DETAILS THAT MATTER
Specifications.
| GVM(Kg) | 25500 kgs |
|---|---|
| Wheelbase(mm) | 4000 |
| Front overhang (mm) | 1420 |
| Rear Overhang (mm) | 815 |
| TCD (m) | 14.5 |
| Engine Type | VEDX8 6 cyl, 4 valve per cylinder, turbocharged, intercooled diesel, common rail |
| Max Power | 280 hp @ 2200 rpm |
| Max Torque | 1050 Nm @1100-1700 rpm |
| Clutch Type | Spring loaded pull type with clutch booster |
| Clutch Diameter | 430 mm |
| Gearbox | ET140S9 |
| Rear Axle | Meritor Tandem-Fully floating Banjo |
| Final Drive Ratio | 5.29 |
| Chassis Type | Ladder type joggle frame, 285 x 76 x 7 mm |
| Suspension | Front: Parabolic leaf springs Rear: Bogie suspension |
| Shock Absorbers | Hydraulic Double Acting Telescopic type at front only |
| Steering | Tilt and Telescopic hyadraulic power steering |
| Body Size | 10 cum |
| Gradiability(%) | 56.00% |
| Max Speed | 88 kmph |
| Fuel Tank | 220 ltrs |
| Electrical | 2 x24 V, 120 Ah |
| Tyre | 315/80R22.5- 16PR |
Specifications reflect the stated South African model or range. Equipment can vary by derivative and application; confirm your selected configuration with Thompson Motors.
