FAW JK6 16.240 FD/FT (6 Cube) Brochure
Shared tipper / tractor chassis reference sheet; use the configuration applicable to JK6 16.240 FD/FT (6 Cube).
FAW • TIPPER

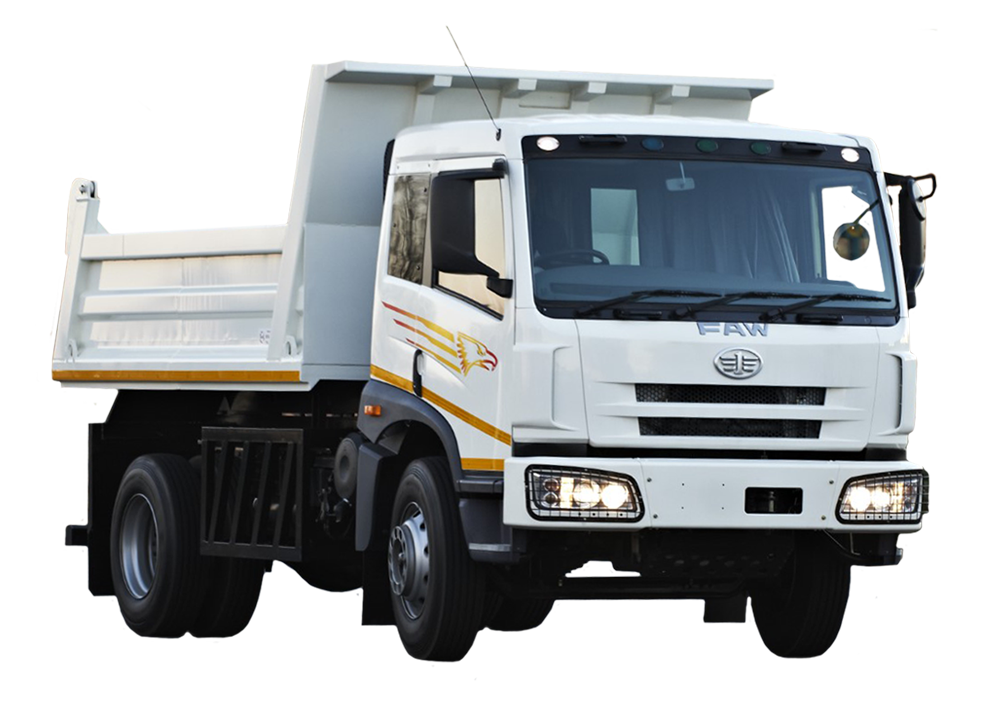

JK6 16.240 FD/FT (6 Cube)
Discover FAW JK6 16.240 FD/FT (6 Cube) at Thompson Motors. Explore the vehicle, read the details and plan your next move.
Tipper
Make it your next move.
- 8 speed Range Change gearbox
- ABS with dual-circuit air brakes
Equipment and specifications depend on the selected version. Our team will confirm the details for your quotation.
A CLOSER LOOK
Explore JK6 16.240 FD/FT (6 Cube).
DESIGNED FOR YOUR JOURNEY
Get to know your vehicle.
Construction and bulk materials
A tipper configuration for material-handling work. Confirm the body volume, material density and legal payload for your application when requesting a quote.
Configuration and equipment
Review the engine, transmission, chassis dimensions and mass limits in the local manufacturer PDF. Permissible operating mass and body selection determine the finished vehicle specification.
Plan your vehicle with Thompson Motors
Tell our team about your route, required body, load or passenger needs. Request a quote to confirm vehicle availability, current equipment and the configuration suited to your business.
THE DETAILS THAT MATTER
Specifications.
| Axle configuration | 4×2 |
|---|---|
| Transmission | 8 Speed Range Change |
| Cab seating | Driver + 1 Passenger |
| Engine displacement | 7 127 cm³ |
| Emissions standard | Euro II |
| Power | 177 kW at 2 300 rpm |
| Torque | 890 Nm at 1 400 rpm |
| Fuel capacity | 200 Litre |
| Manufacturer GVM | 18 000 kg |
| Manufacturer GCM | 32 000 kg |
| Permissible vehicle mass | 16 000 kg |
| Permissible combination mass | 32 000 kg |
| Wheelbase | 3 800 mm |
| Overall length | 6 375 mm |
| Overall width | 2 470 mm |
| Overall height | 2 760 mm |
Specifications reflect the stated South African model or range. Equipment can vary by derivative and application; confirm your selected configuration with Thompson Motors.
